Natural Granite Stone Press Rolls high hardness with smooth surface

I'm Online Chat Now

Natural Granite Stone Press Rolls high hardness with smooth surface

Natural Granite Stone Press Rolls high hardness with smooth surface
Natural Granite Stone Press Rolls high hardness with smooth surface Natural Granite Stone Press Rolls high hardness with smooth surface Natural Granite Stone Press Rolls high hardness with smooth surface Natural Granite Stone Press Rolls high hardness with smooth surface

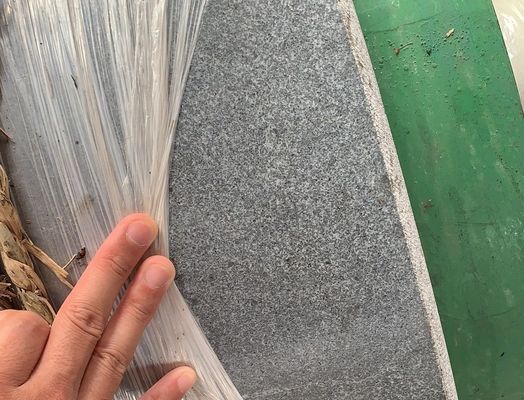

Large Image :  Natural Granite Stone Press Rolls high hardness with smooth surface

Product Details:

Place of Origin: CHINA
Brand Name: POLARIS
Certification: CHINA LIGHT INDUSTRY STANDARD
Model Number: CUSTOMIZED

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: STANDARD EXPORT PACKAGE
Delivery Time: 20 WORK DAYS
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
MATERIAL: GRANTIE
High Light:

paper machine roll

,

edc machine paper rolls

Natural granite stone press rolls for the paper making machine



Granite stone roller

1: Description

The natural granite press roll is an important part for dewatering on the paper machine. It has the characteristics of smooth surface, high hardness, high strength, and resistance to acid and alkali. The surface of the granite roll is smooth, but there are many small micro holes , Good air permeability, so wet paper is easy to fall off, which is especially conducive to paper receiving operation. It is widely used in various paper machines.

Natural Granite Stone Press Rolls high hardness with smooth surface 0

2: main parameters

Specifications: 300-1250mm in diameter, 1-5 meters in length.

Models: 787, 1092, 2880, 1575, 1600, 1760, 1880, 2100, 2362, 2400, 2640, 3150, 3600, 3800, 4500.

Compressive strength> = 98.07MPa; hardness HV> 300;

Tensile strength> = 5MPa; Elastic modulus> = 0.4X1000000 kg / cm2.

Natural Granite Stone Press Rolls high hardness with smooth surface 1

Three: matters needing attention

It is advisable to store it indoors to avoid roller cracks due to temperature changes in the open air, especially in cold regions.

Pay attention to protect the roller surface when loading the truck to prevent injuries and scratches.

Granite is a non-homogeneous material. It should be balanced in force during use to avoid vibration and tension.

During use, the temperature rise of the bearings at both ends does not exceed 40 degrees, to avoid the large temperature difference between the inside and outside of the roller caused by the excessive temperature, which may cause cracks on the roller surface or cause the core shaft and the roller to loosen and affect the use, especially the copper shaft or Babbitt shaft.

The linear pressure should not exceed 60KN / M (60Kgf / cm) when used under pressure.



The granite crushing roller end face is marked with a rotation arrow and must not be inverted during installation.

Natural Granite Stone Press Rolls high hardness with smooth surface 2
