Product Details:
Payment & Shipping Terms:
|
| Jumbo Roll Size: | 1200mm-2200mm | Paper Core Loading: | Automatic |
|---|---|---|---|
| Unwinding Plys: | 1-3plys | Embossing Pattern: | Customized |
| Perforating Device: | Yes | Rolls Loading: | Pneumatic |
| High Light: | Toilet Paper Paper Embossing Machine,Semi Automatic Paper Perforating Machine,1200mm Paper Rewinding Machine |
||

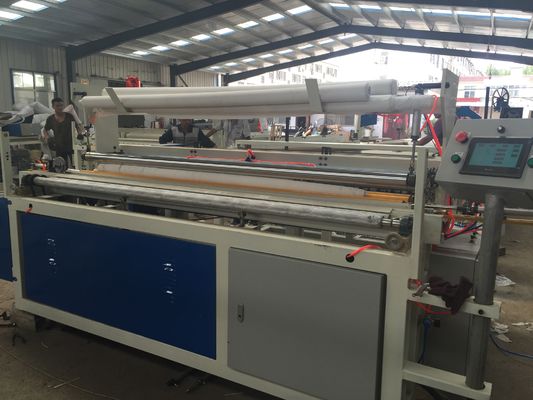

Semi Automatic Toilet Paper Rewinding Embossing And Perforating Machine
| Name | Toilet paper roll rewinding machine |
| Model | 1880mm |
| Raw material Width | 2000mm |
| Finished Roll Diameter | Φ70~140mm(adjustable) |
| Finished Roll Core Diameter | According to customers’ need |
| Raw Material Diameter | ≤Φ 1100 mm (Other sizes are available ) |
| Raw material loading | pneumatic |
| Raw Material Core Diameter | 76.5 mm(customer can assign ) |
| Control | PLC |
| Alarm system and Remote control | yes |
| Emergency stop system | yes |
| Perforating Pitch | electricity |
| Gap of Perforating Pitch | Adjustable |
| Speed | 140-180 m/min |
| Parameter Setting | yes |
| Embossing Roller | steel roll |
| Unwinding Paper Stand | 1-3plys |
| Power | 5.5kw |
| Dimension(L×W×H) | 6000×2300×1600mm |
| Weight | 2500kg |
