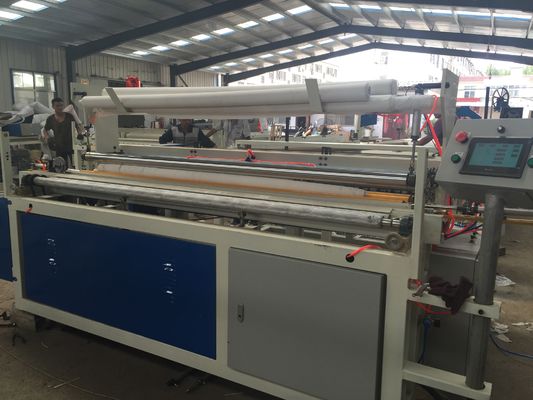

Semi Automatic Toilet Paper Rewinding Embossing And Perforating Machine 1200mm - 2200mm
Product Summary
Semi Automatic Toilet Paper Rewinding Embossing And Perforating Machine Name Toilet paper roll rewinding machine Model 1880mm Raw material Width 2000mm Finished Roll Diameter Φ70~140mm(adjustable) Finished Roll Core Diameter According to customers’ need Raw Material Diameter ≤Φ 1100 mm (Other sizes ...
Basic Properties
Place of Origin:
China
Brand Name:
YUXING
Certification:
China light Industry standard
Model Number:
1092mm-2100mm
Trading Properties
Minimum Order Quantity:
1set
Price:
USD9000-12000/SET
Payment Terms:
Western Union, , L/C, T/T
Supply Ability:
5 sets per month
Product Description
Semi Automatic Toilet Paper Rewinding Embossing And Perforating Machine
| Name | Toilet paper roll rewinding machine |
| Model | 1880mm |
| Raw material Width | 2000mm |
| Finished Roll Diameter | Φ70~140mm(adjustable) |
| Finished Roll Core Diameter | According to customers’ need |
| Raw Material Diameter | ≤Φ 1100 mm (Other sizes are available ) |
| Raw material loading | pneumatic |
| Raw Material Core Diameter | 76.5 mm(customer can assign ) |
| Control | PLC |
| Alarm system and Remote control | yes |
| Emergency stop system | yes |
| Perforating Pitch | electricity |
| Gap of Perforating Pitch | Adjustable |
| Speed | 140-180 m/min |
| Parameter Setting | yes |
| Embossing Roller | steel roll |
| Unwinding Paper Stand | 1-3plys |
| Power | 5.5kw |
| Dimension(L×W×H) | 6000×2300×1600mm |
| Weight | 2500kg |
Product Details
Highlight:
Toilet Paper Paper Embossing Machine
,Semi Automatic Paper Perforating Machine
,1200mm Paper Rewinding Machine
Jumbo Roll Size:
1200mm-2200mm
Paper Core Loading:
Automatic
Unwinding Plys:
1-3plys
Embossing Pattern:
Customized
Perforating Device:
Yes
Rolls Loading:
Pneumatic
