Customized Vibration Screen Machine For Removing The Light Impurities Of Waste Paper Pulp
Product Summary
1.8m2 vibratin screen for removing the light impurities of the paper pulp For pulp screening and purification. The film and other coarse impurities in the coarse pulp are screened out by frequency vibration, and the good pulp enters the next process through the sieve plate. The machine has the ...
Basic Properties
Place of Origin:
CHINA
Brand Name:
YUXING
Certification:
CHINA LIGHT INDUSTRY STANDARD
Model Number:
1.8M2
Trading Properties
Minimum Order Quantity:
1SET
Payment Terms:
T/T, Western Union,
Product Description

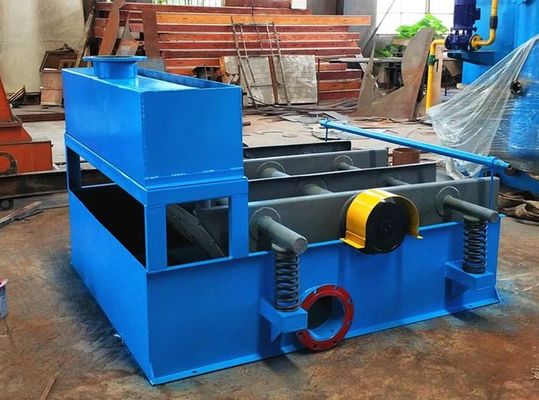

1.8m2 vibratin screen for removing the light impurities of the paper pulp
For pulp screening and purification. The film and other coarse impurities in the coarse pulp are screened out by frequency vibration, and the good pulp enters the next process through the sieve plate. The machine has the advantages of simple structure, easy maintenance, low production cost, high production efficiency, etc., and is an ideal pulp screening equipment.
- Supply scope:vibration screen,motor,joints,bolts.
- Main specification:
| Item | Unit | Specification | Marks |
| Effective screen area | M2 | 1.8 | |
| Pulp consistency | % | 0.8-4 | |
| Sieve hole size | Mm | 1.5-10 | As customized |
| Capacity | Ton/day | 20-40 | |
| Pulp outlet diameter | Mm | 219 | |
| Flush water pressure | Mpa | 0.2-0.3 | |
| Motor power | KW | 3 | |
| Dimension | 2200mm | 2100mm | 1600mm |
| Weight | Kg | Gross weight 1000 | Net weight 800 |
3.Features:
3.1 Duplex design
3.2 Partially biased structure
3.3 High frequency and low amplitude form
3.4 Spring shock absorption
4. material
4.1 main body A3 steel plate thicknessσ5mm
4.2 shaft:40Cr Quenching and tempering
4.3 screen plate S.S thicknessσ2.0-5mm
Product Details
Highlight:
Customized Light Impurity Pulp Vibration Screen
,Waste Paper Pulp Vibration Screen
,1.8m2 Customized Vibrating Screen Machine
MATERIAL:
STAINLESS STEEL
Application:
Pulp Making
Condition:
New
Warranty:
1 Year
Voltage:
380V
Weight:
Depends
