Three Layer Bottom Mesh Paper Making Fabric Good Water Filtration Performance

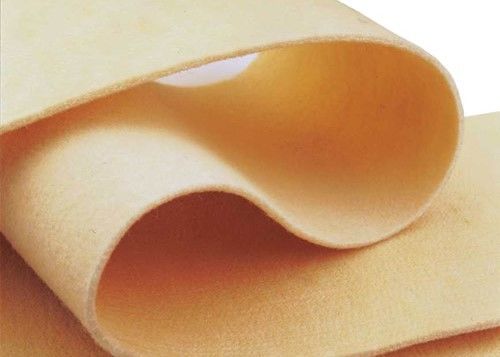

Triple layer bottom wire paper making felt (BOM)

Paper felt is a fabric used in the paper industry for paper forming, dewatering and conveying of wet paper press. The processing method is to first make a thin base fabric with synthetic fibers, and then lay a mixed fiber web of synthetic fibers and a small amount of wool, which is made by needling, chemical treatment, resin finishing and heat setting. Products require good dehydration, smoothness, abrasion resistance, dimensional stability, chemical resistance, antibacterial, heat resistance and hydrolysis resistance, etc.

Three-layer bottom mesh papermaking felt includes 1 + 2 composite structure, 2 + 1 composite structure and 1 + 1 + 1 composite three-layer bottom mesh papermaking felt. The blanket can adapt to the line pressure above 200KN / M, has good elasticity, good water filtration performance, can effectively eliminate various marks, stable size, long service life and so on. It is suitable for vacuum compound press, large roll diameter blind hole press, shoe press and other forms of press for medium and high speed paper machines. It is used for copying various high-end newsprint, cultural paper, parchment board, cardboard and other paper types.

Suitable for vehicle speed: ≦ 800m / min; line pressure: ≧ 200KN / M

Specification of the single layer bottom wire paper felt

The choice of paper making felt depends on the type of paper produced, the paper grammage and surface modification requirements, the type of paper machine, the environmental conditions in which the felt are used, and the existing carpet cleaning and purification equipment. When the paper surface modification requirements are more stringent, the longitudinal and lateral yarns of the felt bottom net should be thinner, and the structural design requires a smooth surface. High-speed and wide-width paper machines require good strength and stability of the felt, and the grooves, blind holes, and vacuum press rolls require the felt to be stronger. When the press load is high and the surface of the press roller is hard, the mechanical properties of the felt are higher. The blanket configured with high-pressure water washing requires good flocking fastness
