| Material: | Polyester | Application: | Paper Drying |
|---|---|---|---|
| Type: | Plain Weaving | Size: | Depends |
| Weight: | Depends | Name: | Dryer Screen |
| Highlight: | paper making felt,raw materials for making toilet paper |
||
19. Polyester plain weaving round wire dry fabric for paper making machine
Dry net is an important part of the dryer of the paper machine. Its function is to filter water and level the paper.
Polyester mesh is one of the main drying and filtering materials in the world, so it is widely used in the field of paper making, and it is an indispensable and expensive dewatering equipment in the paper making industry.
The manufacturing process of polyester mesh is generally: shaping, weaving, primary setting, plug-in, secondary setting
Polyester mesh has the characteristics of high strength, small deformation, good corrosion resistance, abrasion resistance, and long life.
Features: It has acid resistance, alkali resistance, wear resistance, high temperature resistance, long service life, flat mesh surface, high tensile strength, and good breathability. High heat transfer efficiency can save energy for users. Easy to install and use, no marks on the interface, strength can reach normal network

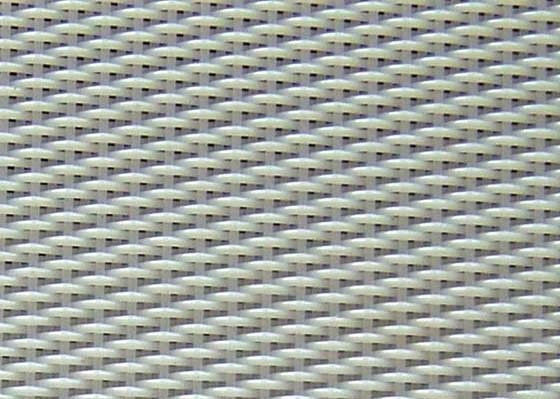

Polyester round yarn plain woven dry net
Product characteristics: The round wire mesh surface is flat, the size is stable, and the service life is long. It is suitable for various printing, writing, wrapping paper, cardboard, corrugated base paper, and can also be used in the drying department of other industries.
Technicals:
| Variety | Model | Wire diameter(mm) | Density(pcs/cm ) | Air permeability(m³/m²h ) | |||
| Warp | Weft | Warp | weft | ||||
| Round wire | 1.5layer | GW22503 | 0.50 | 0.50 | 23-24 | 11-12 | 8000 |
| GW24503 | 0.50 | 0.50 | 25-26 | 11-12 | 7000 | ||
| GW28403 | 0.50 | 0.40 | 28.5-29.5 | 14-15 | 8000 | ||
| 2 layer | GW20504 | 0.50 | 0.50 | 21-22 | 11-12 | 12000 | |
| GW22504 | 0.50 | 0.50 | 23-24 | 11-12 | 11000 | ||
| GW24504 | 0.50 | 0.50 | 25-26 | 11-12 | 10000 | ||
