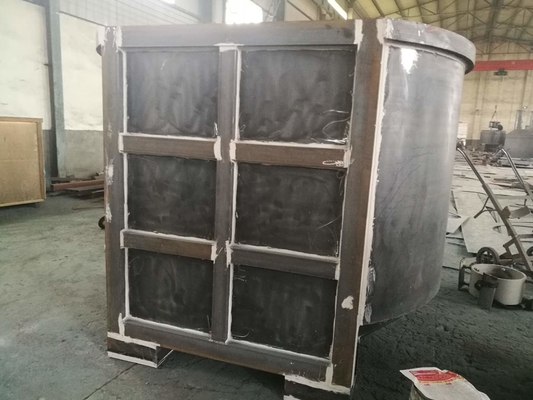

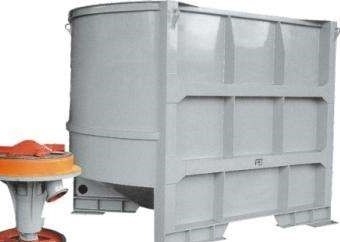

D Shaped Continuous Paper Pulper Machine Equipped With Rope Winch And Settler

7. D shaped continuous hydropulper system for the waste carton paper recycling

D type hydraulic pulper is designed on the basis of existing traditional pulper with reference to foreign advanced technology. Its main feature is that the volts rotor is off-center, making the paper material contact the rotor more quickly and with higher frequency. The traditional hydraulic pulper produces an unobstructed swirling flow, and the paper stock moves from the joining place to the center rotor according to the spiral trajectory. The D-type hydraulic pulper has changed this flow mode to make the paper material contact the rotor more quickly, which can shorten the time from the paper material to the disintegration process, and without increasing the power and volume. Increase production capacity.

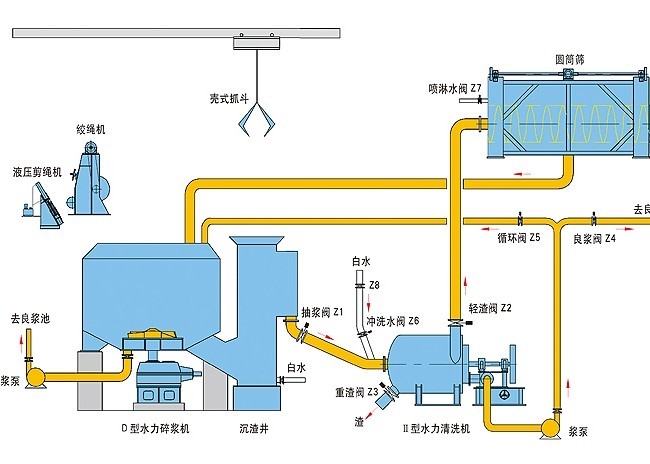

D type hydraulic pulper is generally equipped with a rope winch and a settler. The rope twister can remove strip-shaped entangled impurities, such as plastic packaging bags, rope ends, iron wires, etc. The recommended model of the rope twister is ZTS1. There is a rectangular interface at the bottom of the tank. The mouth is connected to the sediment well and then the plastic separator and other light impurities are removed by the impurity separator to achieve continuous production. Heavy debris deposited at the bottom of the sediment well is discharged regularly. This interface can also be equipped with a heavy slag collection tank for intermittent production

Specification:

1. 20

1.D type hydra pulper

-Effective working volume:20m3

-Consistency:3-5%

-Vat wall material:stainless steel

-Screen plate material:stainless steel

-Screen plate hole size:Ø10mm

-Motor:200kw-6

-Drive type : triangle belt

-Design of bearing : ball bearing

-Cast stainless steel rotor

-Shaft 40Cr heating treatment

-With bolts,motor rail,motor wheel,motor base plate,grit chamber

2.Drum screen

-Rotor diameter: Ø955mm

-Screen plate:stainless steel

-Driving type :V-Belt driving

-Motor power :5.5kw-4

3.Grapple:304 stainless steel ,with penumatic pipe,switch control

4.Ragger: with motor,speed reducer and control device

With automatic discharging device,bolts,motor base plate ,motor
