Medium And Low Speed Fluting Paper Machine Polyester Spiral Medium Ring Dryer Screen

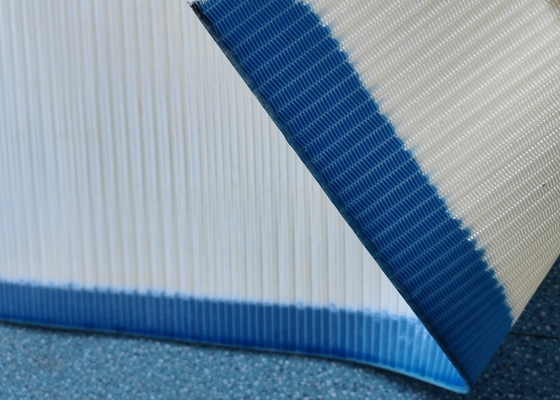

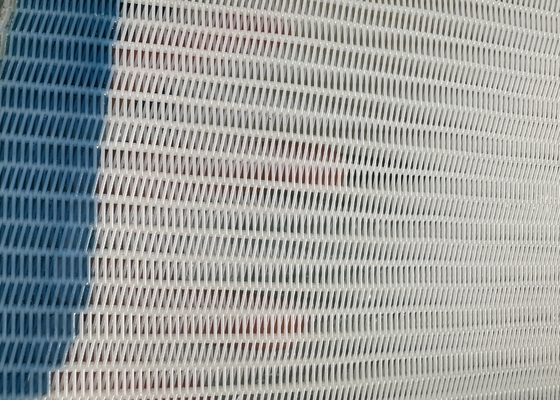

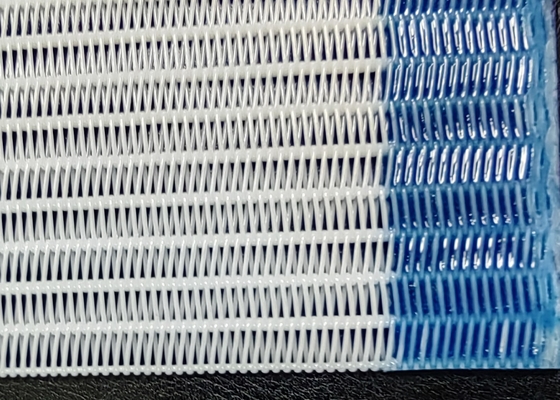

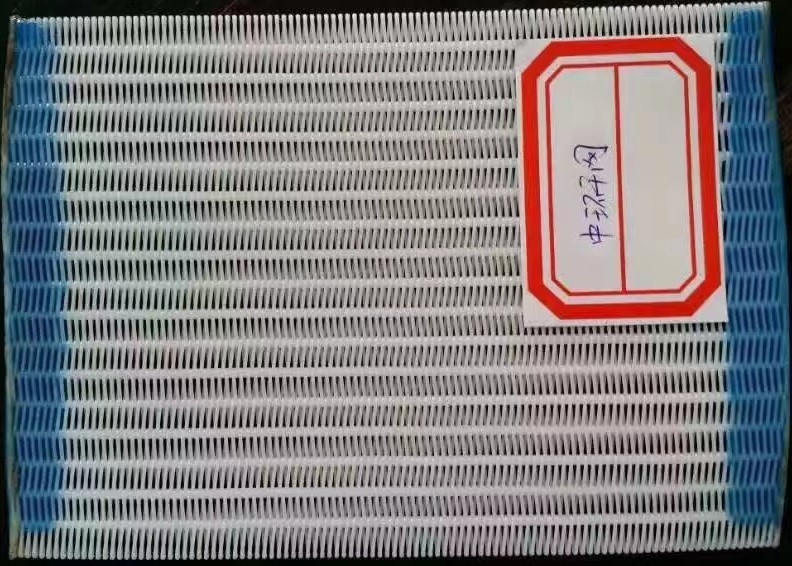

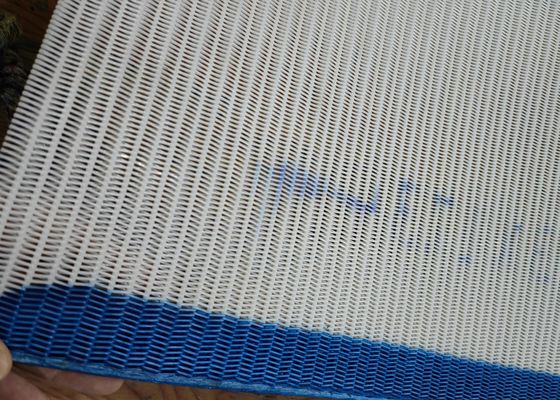

Medium And Low Speed Fluting Paper Machine Polyester Spiral Medium Ring Dryer Screen
1.spiral dryer fabric uses high-strength monofilament and is suitable for drying packaging paper, cultural paper, board paper and pulp board with large quantitative quantities. It is widely used and can also be used as conveyor belts and mesh belts for laminating machines.
2.It has high air permeability, flat mesh surface, can be detached and connected at will, has good strength and long service life.
3.Specification
| Wire model | Ring width mm |
Wire diameter mm |
Strength N/cm |
Weight Kg/㎡ |
Thickness Mm |
Air permeability m³/㎡h |
Reference filtering accuracy Um |
|
| Warp | Wept | |||||||
| Medium ring 6890A | 8 | 0.68 | 0.9 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
| Medium ring 6890B | 7.15 | 0.68 | 0.9 | 2000 | 1.4 | 2.45 | 16000 | 1000 |
Dry net is an important part of the dryer of the paper machine. Its function is to filter water and level the paper.
Polyester mesh is one of the main drying and filtering materials in the world, so it is widely used in the field of paper making, and it is an indispensable and expensive dewatering equipment in the paper making industry.
The manufacturing process of polyester mesh is generally: shaping, weaving, primary setting, plug-in, secondary setting
Polyester mesh has the characteristics of high strength, small deformation, good corrosion resistance, abrasion resistance, and long life.
Features: It has acid resistance, alkali resistance, wear resistance, high temperature resistance, long service life, flat mesh surface, high tensile strength, and good breathability. High heat transfer efficiency can save energy for users. Easy to install and use, no marks on the interface, strength can reach normal network
