Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Pressure: | Low Pressure |
|---|---|---|---|
| Application: | Pulp Making | Power: | Depends |
| Warranty: | One Year | Color: | Optional |
| Fuel: | Motor Drive | Usage: | Waste Paper Pulp Cleaning |
| High Light: | sand screening machine,waste screening machine |
||

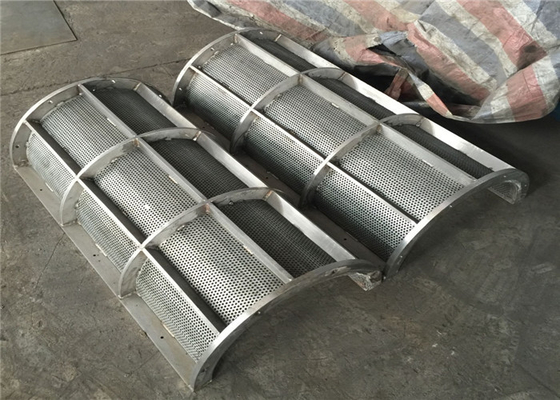

4. Rejects seperator screen plate made by stainless steel material

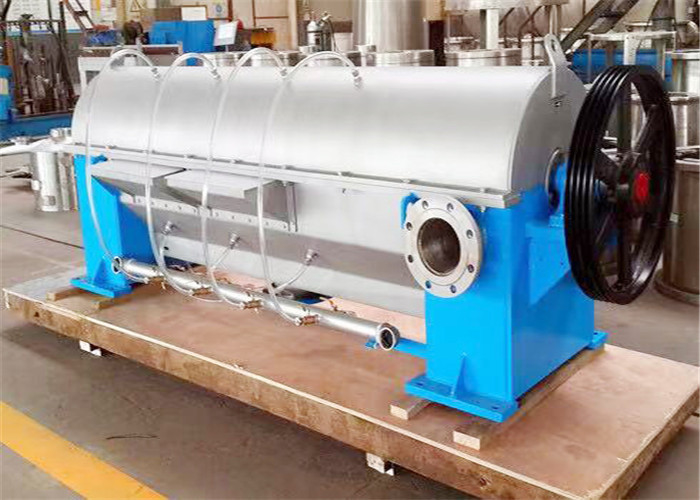

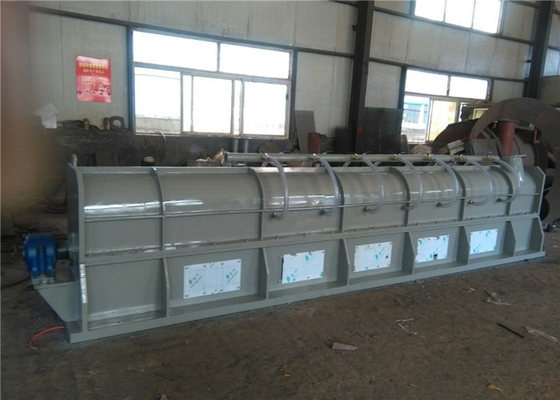

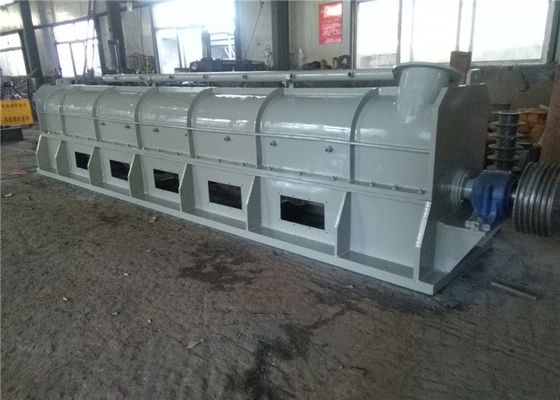

The rejects separator is an ideal equipment for tailings treatment in waste paper pulping system. Adopting closed operation, no splash of pulp water, good treatment effect, reducing fiber loss, and low slag disposal cost. It is a special equipment for treating tailings of equipment such as fiber separators and pressure screens
The screen plate is made by stainless steel , sieve plate hole size Ø2mm -Ø4mm .
Equipment failure and solutions
| Failures | Reason | Solutions |
| The current is too high |
Too much inlet pulp Inlet pulp consistency is too high Worn or severely damaged bearings Severe rotor imbalance vibration |
Reduced pulp feed Reduce the feed concentration Replace bearing Rotor calibration |
| Bearing temperature too high |
Insufficient or excessive bearing lubrication severely worn bearings The bearing is too tight or too loose with the shaft and bearing housing Rotor bending |
Add or reduce lubricant Clean or replace bearings Adjust fit Correct or replace the rotor |
| Much fiber loss |
Too much pulp feed, too high pulp concentration Screen is too large Insufficient water spray volume, low water spray pressure or blocked nozzle The clearance between the cleaning plate and the sieve plate is too large |
Reduce the feed volume and reduce the feed concentration Increase the diameter of the screen hole to increase the spray pressure or clean the blocked nozzle Adjust gaps and replace worn screens or cleaning plates |
