|Capacity:||10-20T/D||Rotary Drum Diameter:||Φ280mm|
|Rotary Drum Wall Thickness:||δ4mm||Sieve Hole Size:||Φ3mm|
|Motor:||22kw||Material:||Whole Stainless Steel|
|Usage:||Coarse Pulp Cleaning|
Stainless Steel Reject Sorter,
20T/D Reject Sorter,
Coarse Pulp Cleaning Reject Sorter

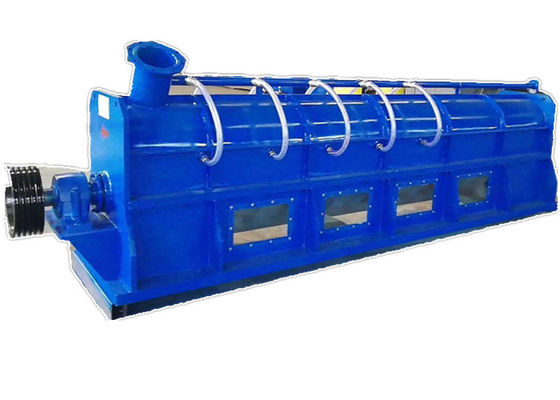

The Whole Stainless Steel Reject Sortor Machine For Second Stage Of Coarse Pulp Cleaning In The Stock Preparation
Features: This machine is mainly used for the treatment of tailings in the screening section of the waste paper system. The incoming pulp concentration is about 1-3%, and the slag concentration can reach 20%. The processing efficiency is high, the fiber retention rate is high, and the recovery rate can reach 80. % Or more; only normal pressure operation is required, and it is a closed operation to avoid dirt splashing, save the cost of slag disposal, and fast long-term investment recovery.
2. Main technicals
|Inlet pulp consistency %||1-3.5|
|dump consistency %||15-20|
1. The cylinder body is welded by steel plates, the part in contact with the slurry is made of stainless steel, and there are eight water spray pipes on both sides of the cylinder body.
2. The rotor is a rotating rod with 32 blades fixed on it.
3. The sieve plate is a combination of two semi-circular sieve cylinders with diameter Φ2.0-Φ4.5mm, which can be selected according to needs
