Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine

Product Summary
Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine The bed roller is a kind of roller in the paper machine. Its main function is to press the pulp and improve the density and smoothness of the paper. The lying roller usually consists of a mandrel and a rubber ...
Basic Properties
Place of Origin: CHINA
Brand Name: YUXING
Certification: CHINA LIGHT INDUSTRY STANDARD
Model Number: CUSTOMIZED
Trading Properties
Minimum Order Quantity: 1SET
Payment Terms: T/T, Western Union,
Product Description

Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine

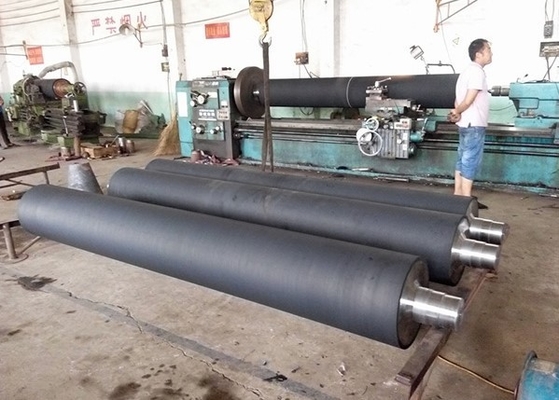

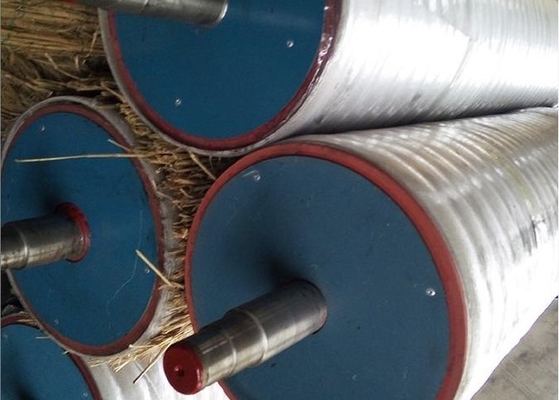

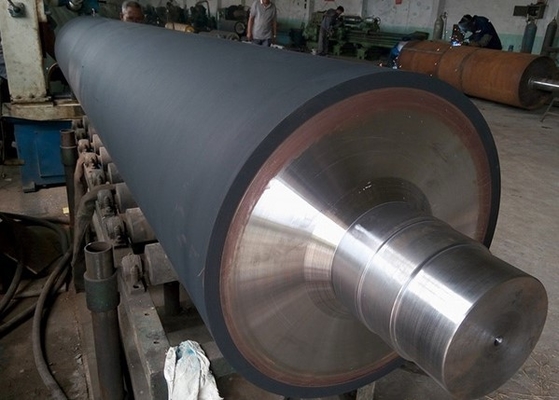

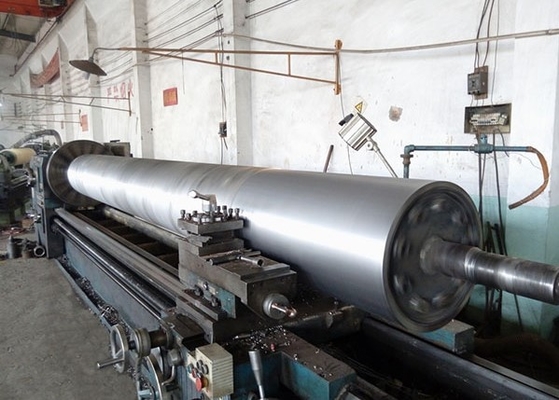

The bed roller is a kind of roller in the paper machine. Its main function is to press the pulp and improve the density and smoothness of the paper. The lying roller usually consists of a mandrel and a rubber coating, and its rotational speed can be adjusted according to actual needs. The diameter and hardness of the bed roller will also be adjusted according to the variety and quality requirements of the paper.

1 Shaft #45 steel
2 rubber cover high wear resistance synthetic rubber,thickness 20mm,hardness 0-2P&J,PH:6.8-7.8
3 Shell Q235A
4 side cover  S.S304
5 Diameter 450mm
6 working speed 120m/min
7 balancing speed 150m/min
8 wire tension 4kg/cm



According to the drawings provided by customers or our professional meticulous rigorous drawing, advanced processing technology and equipment are used, and the rubber has good elasticity, moisture resistance, heat resistance, acid and alkali resistance and corrosion resistance, and the surface has accurate and uniform hardness. The maximum tolerance of hardness should be within the allowable range, and the aging resistance is good. Ensure that the rubber roller can perfectly fit the customer's paper machine, extend the service life, save costs for customers, and create more revenue.

Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine



Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine

Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine

Rubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making MachineRubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making MachineRubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making MachineRubber Covered Cast Iron Couch Roller Of Cylinder Mould For Small Paper Making Machine

Product Details
Highlight:

Cast Iron Couch Paper Machine Roller

,

Small Capacity Paper Machine Roll

,

Small Mill Couch Paper Roller

Type: Rubber Roll
Condition: New
Warranty: One Year
Application: Paper Making Machine
Packaging Material: Structure Steel,plywood Case
Name: Couch Roller
Shell Body Material: Q235A Steel Pipe
Shaft: #45 Steel
Cover Material: Synthetic Rubber
Bearing: ZWZ
Bearing House: HT250

Mr. John Lou

Manager
